INTRODUCTION
The Cambrian (Furongian) Potosi Dolomite in Illinois is part of the Cambrian-lower Middle Ordovician Knox Group (Fig. 1A) and is a relatively uniformly dolomitized unit with low siliciclastic content. Studies to date of the Potosi in the Illinois Basin have been mainly of general stratigraphic nature (e.g., Buschbach, 1975; Lasemi & Askari, 2014). The Potosi is characterized by very low intercrystalline porosity but encompasses vug and fracture/cavern porosity intervals (terminology after Chocquette & Pray, 1970) in which several hundred barrels of fluid may be lost during drilling (Lasemi & Askari, 2014, 2021; Leetaru et al., 2014). Cavernous intervals could serve as reservoirs for oil and gas, groundwater, and ore mineralization (e.g., Loucks, 1999), or serve as repositories for CO2 and hazardous waste material. This study focuses on facies, stratigraphic variability, paleokarst features, and mineralization in the Potosi using the available subsurface data. Geophysical log suites, well samples/cores, and petrographic data are used to document the presence of caverns and open vugs, diagenetic cements, and breccias associated with cave collapse. The Potosi vug and brecciated zones at the ADM IBDP wells, Macon County, central Illinois was assumed to be the result of early vadose or phreatic karstification due to subaerial exposure at the top of the Eminence Dolomite (Leetaru et al., 2014). However, the results of this study suggest that the Potosi karstification had no genetic relationship with groundwater recharge from the upper surface of the overlying Eminence Dolomite. Here, we interpret the characteristics of the widespread porous zones in the Potosi as paleokarst features formed by rising hypogenic basinal/hydrothermal fluids that caused massive dolomitization and overdolomitization of the host carbonates, formation of dissolution porosity/permeability, and mineralization.
GEOLOGIC SETTING AND STRATIGRAPHY
The intracratonic Illinois Basin covers most of Illinois and parts of western Kentucky and southwestern Indiana. It is bordered by a series of prominent arches and domes (Fig. 1B) and overlies the northeast extension of the Late Proterozoic to Middle Cambrian Reelfoot Rift system (Kolata & Nelson, 1990) associated with the breakup of supercontinent Rodinia (e.g., Bond et al., 1984; Meert & Torsvik, 2003). Numerous folds, monoclines, and fault zones and systems are present (Fig. 1C), which show a variety of structural styles; the folds and monoclines generally overlie faults in the Precambrian crystalline basement and in several cases, the same structure has undergone deformation under more than one stress regime (Nelson, 1995). Several domes or irregular shape folds overlie Precambrian hills in southern Illinois that are unrelated to major anticlines and monoclines and in places the basal Knox carbonates directly rest on granite basement (Nelson, 1995).
The Cambrian and Lower Ordovician succession in northern Illinois consists of alternating carbonate and siliciclastic units (Fig. 1A) the upper part of which was classified as the Lower Ordovician Prairie du Chien Group (Buschbach, 1975; Kolata, 2005; Willman & Buschbach, 1975). The siliciclastic intervals thin southward and grade to carbonate dominated units in southern and deeper part of the Illinois Basin. South of 40˚ N latitude, the succession including the capping lower Middle Ordovician interval is classified as the Knox Group (Fig. 1A), which includes Bonneterre, Davis, Derby-Doerun, Potosi, Eminence, Oneota, Shakopee, and Everton stratigraphic units (Kolata, 2005) consisting chiefly of fine to coarsely crystalline dolomite (Lasemi & Askari, 2014).
The Cambrian (Furongian) Potosi Dolomite was named for the town of Potosi, Washington County, Missouri by Arthur Winslow in 1894 who mentioned drusy quartz as a distinguishing feature (in T. L. Thompson et al., 2013). The Potosi is conformably bounded by the underlying Derby-Doerun Formation and the overlying, uppermost Cambrian, Eminence Dolomite. Thompson et al. (2013) noted that the Potosi contact with the Eminence is difficult to recognize and in places the two formations are mapped as a single unit. Siliciclastic content is low compared to the underlying and overlaying units that consist of dolomite interbedded with sandstone and siltstone/shale beds (Figs. 1A and 2G). The Potosi thickness ranges from 100 feet (30 m) in northern Illinois to over 600 feet (183 m) in southern Illinois (Lasemi & Askari, 2014). In southwestern Indiana, rocks equivalent to Davis, Derby-Doerun, Potosi, and Eminence stratigraphic units of Illinois are included in the Potosi Dolomite because they are hardly distinguishable (Shaver et al., 1986; T. A. Thompson et al., 2016). The Potosi Dolomite occurs in western Kentucky, but its lower and upper contacts are difficult to recognize (Johnson & Schwalb, 2010).
LITHOFACIES AND RESERVOIR PROPERTIES

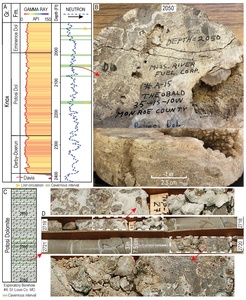

The Potosi Dolomite varies from medium bedded (10-30 cm thick) to very thick bedded (over 1 m thick) and commonly contains vug cavities that are generally lined with drusy quartz (Fig. 2A, B). Drusy quartz is a distinctive feature of the Potosi in Missouri (Palmer, 1989; T. L. Thompson et al., 2013) and Illinois (Buschbach, 1975; Lasemi & Askari, 2014, 2021). The Potosi commonly has very low porosity and, based on crystal size classification of Folk (1959), is composed of medium (0.062-0.25 mm) to coarse (0.25-1 mm) crystalline dolomite; its primary depositional fabric is destroyed but ghosts of carbonate grains (Fig. 2C, D, E) record deposition in a shallow marine setting (Lasemi & Askari, 2021). In the subsurface, well records, including geophysical log signatures, well samples, and cores may be utilized to characterize the Potosi Dolomite. Gamma ray logs commonly display a lower gamma ray response in the Potosi compared to the underlying and overlying units (Fig. 2G). The higher gamma ray response in the porous intervals is likely due to the presence of uranium. Abundant drusy quartz and chert, low siliciclastic content, fractured/vug cavities that may be partially to completely mineralized, and collapse breccia commonly characterize the Potosi.
The Potosi is a uniformly dolomitized unit in which intercrystalline porosity is typically very low or absent (Figs. 2 C through F and 3A, C, E). Low matrix porosity can be attributed to overdolomitization (cementation/recrystallization) process (e.g., Lucia, 2004). Dolomite crystals generally show wavey extinction and, according to the terminology of Sibley and Gregg (1987), typically are planar-s (subhedral to anhedral) or nonplanar anhedral type with irregular and curved boundaries (Figs. 2C and 3 A through F). Saddle dolomite (e.g., Radke & Mathis , 1980) inclusion rich void-filling cement which displays curved and zigzag crystal faces and coarse planar to nonplanar replacive dolomite are both present (Fig. 3 A through F). Primary and secondary inclusions (Goldstein, 2003; Goldstein & Reynolds, 1994) are present (Fig. 3A, C) with primary inclusions along the direction of crystal growth and secondary inclusions cutting through growth zones or occurring as isolated irregular shape; two-phase fluid inclusions consisting of bright liquid and dark spherical bubble shape gas phase (Fig. 3C) are recognized but were not measured.
The Potosi Dolomite encompasses vug, fracture and cavern porosity intervals confined by very low porosity host dolomite (Figs. 2G, H, I, 3A, C, G, H, 4, and 5). The cavities are typically lined with drusy quartz (Fig. 2B) or are characterized by partial to complete infilling with chalcedonic silica and/or dolomite cements (Figs. 2H, 3A, C, G, and 4B, D). Void filling cements do not exhibit any sign of pressure solution and in places vug porosity is developed along bedding parallel stylolite (Fig. 3G, H) indicating that these features postdate pressure solution. Silt size internal dolomite sediment may partially fill fracture and cavern porosity (Fig. 2I). Clay minerals may partially fill pore spaces (Fig. 3E); physical properties and thorium-potassium crossplot (Fig. 3I) suggest chlorite as the main clay mineral cement present. In central and southern Missouri, in addition to dolomite and silica, the Potosi contains fault and fracture-controlled Mississippi Valley-type (MVT) ore deposits including commercial barite and sub-economic galena and sphalerite (Gregg & Shelton, 2012; He et al., 1997; Palmer et al., 2012).
Cavern reservoirs in the Potosi are laterally extensive and often stacked with many passages having lateral blind terminations; individual cavern reservoirs are up to 14 feet (4 m) thick (Fig. 5). They display dark conductive patches in FMI log (see for example Macon County Well API#121152346000 in Fig. 5) and show very low bulk density with caliper log signature departing from the baseline (Figs. 2G and 5) indicating enlarged drill hole diameter; fluid circulation may be lost during drilling in these intervals signifying anomalously high permeability. Throughout the Illinois Basin, lost circulation intervals are encountered when drilling the Potosi Dolomite (Bell et al., 1964). Well record data indicates loss of several hundred barrels of drilling fluid during drilling in cavern porosity zones (see for example well API#121152346000 in Fig. 5). About 60 miles east of this well, a chemical waste disposal well, the Cabot Corporation Cabot-Tuscola #2 (API#120412122000) in Douglas County, IL, has injected over 50 million metric tons of CO2 equivalent of liquid chemical wastes into the Potosi (Leetaru et al., 2014). Many wells have tested the Potosi in the Illinois Basin for petroleum, but no commercial production has been achieved.
DISCUSSION AND CONCLUSION
The characteristics of widespread stacked porous and permeable zones in the Potosi is interpreted as being the result of cavern forming multiple paleokarst events that caused massive dolomitization and overdolomitization of the host carbonates, formation of dissolution enlarged porosity/permeability, and mineralization. Paleokarst may be the result of deep hypogenic processes by which, unlike epigenic karst, upward moving dissolving fluid is recharged from below giving rise to dissolution-enlarged permeability structures (e.g., Klimchouk, 2017, 2022). In the Potosi, Karstification was likely controlled by basinal and/or hydrothermal fluid flow through earlier formed pore systems (e.g., Gregg & Shelton, 1989; Klimchouk, 2017). An early porosity network formed by seawater dolomitization at certain intervals may have driven the initial flow of basinal and hydrothermal fluids (Lasemi & Askari, 2021).
Contrary to an earlier suggestion (Leetaru et al., 2014), it is unlikely that the Potosi vug and brecciated zones had any genetic relationship with groundwater recharge from the upper surface of the overlying Eminence Dolomite. The lithologic and petrographic characteristics of the Potosi Dolomite do not support vadose/phreatic karstification. Aside from the major sub-Tippecanoe unconformity, which developed a highly irregular erosional surface on the Lower Ordovician carbonates, in part the consequence of a karst topography in Illinois and the neighboring states (e.g., Lucia, 2012; Overstreet et al., 2003; Willman & Buschbach, 1975), there is no notable internal unconformity in the Knox succession of the Illinois Basin. In addition, the possibility of epigenic karstification was minimal because arid conditions prevailed during late Cambrian and Early Ordovician as evidenced by presence of arid climate indicators (e.g., Harrison & Grammer, 2012; Overstreet et al., 2003; Witzke, 1990). It is unlikely that the fracture/cavern porosity intervals of the Potosi and the underlying Derby-Doerun Formation that, in the deeper part of the basin, occur at depth greater than 2,000 m below the sub-Tippecanoe unconformity was controlled by epigenic fluid flow from the unconformity surface. Any early epigenic karst, if it existed, was heavily modified by later hydrothermal fluids.
The Potosi Dolomite in Illinois, like the host carbonates of the Cambro-Ordovician MVT ore deposits in Missouri (e.g., Gregg & Shelton, 2012), is characterized by massive dolomitization, overdolomitization and occlusion of previously generated intercrystalline porosity, extensive dissolution and formation of void-conduit systems, and void filling mineralization. MVT deposits are precipitated by saline basinal/hydrothermal mineralizing fluids having temperatures in the range of 60 to 250°C (e.g., Gregg & Shelton, 2012). Aside from MVT ore deposits, the Potosi records similar diagenetic, dissolution, and mineralization history in both Missouri and Illinois suggesting a widespread event that was possibly controlled by the same fluid source and regional flow regime.
In the Illinois Basin, post burial origin of cavities and void filling cements, presence of nonplanar dolomite, and void-filling inclusion rich saddle dolomite (Figs. 2C and 3 A through F) suggest karstification and mineralization by hypogenic warm basinal/hydrothermal fluids (e.g., Gregg & Shelton, 1989, 1990; Radke & Mathis , 1980; Warren, 2019). This interpretation is supported by thorium-potassium ratios and the association of saddle dolomite and chlorite cement. Chlorite is a common high-temperature hydrothermal alteration mineral (Fulignati, 2020) and thorium, in contrast to the generally held view, is highly mobile at temperature 175-250°C and commonly incorporates into the structure of carbonate-bearing minerals precipitated from or modified by hydrothermal fluids (Nisbet et al., 2019, 2022). However, future work on geochemical and fluid inclusion analyses of the Potosi Dolomite may shed more light on the origin of fluids for karstification in the Illinois Basin.
Regional late dolomitization and MVT mineralization in the Bonneterre and Davis formations of Missouri were interpreted as being related to migration of warm basinal fluids from the Arkoma and Illinois basins and the underlying granitic basement (Gregg & Shelton, 1989). Keller et al. (2000) concluded that the Reelfoot Rift was a potential source of hydrothermal fluids because of basinward fluid flow at the time of mineralization. The Illinois Basin is the northeast extension of Reelfoot Rift system, and its underlying crystalline basement is similar to the exposed igneous rocks of the Ozark Dome (Keller et al., 2000; Nelson, 1995) whose boundary with the Illinois Basin is along the Ste. Genevieve Fault zone west of the southern part of the basin (Fig. 1C). Dissolution and mineralization likely occurred by flow of deep basinal formation waters and hydrothermal fluids (sourced from the crystalline basement underlying the Reelfoot Rift and the Illinois Basin) along numerous basement-rooted normal, reverse, and strike-slip faults, and the associated fold and fractures. Expansion and contraction because of fault-related seismicity likely developed fracture porosity in brittle host dolomite and possibly ruptured any underling impermeable units to enable large-scale upward and outward fluid movement. Sulfuric acid from oxidized H2S-waters and basement sourced hydrochloric/hydrofluoric acids possibly played a role in dissolution of rocks in this process (e.g., Klimchouk, 2017, 2022). North-northwestward topography-driven brine migration due to Late Paleozoic uplift along the southern margin of the Illinois Basin (Bethke, 1986) was unlikely because the groundwater flow within the basin displays an overall north-to-south pattern and, except for northern Illinois, the Potosi void spaces are saturated with saline connate formation water (Mehnert & Weberling, 2014; Panno et al., 2017).
The Potosi fractured/cavern porosity intervals are confined by thick very low porosity dolomite intervals that could serve as effective seal. There is no report of any show of oil in the Potosi Dolomite, but the unit has an excellent potential to serve as a combined reservoir and seal for storing anthropogenic CO2 and waste material.
